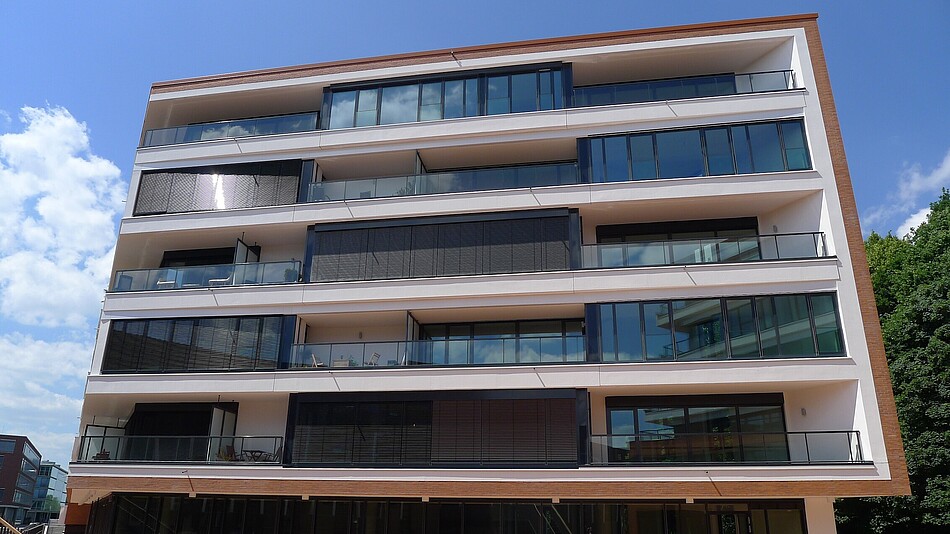

[Translate to Englisch:] Gehobener Komfort – mit einem Automationssystem von Kieback& Peter © HBI Hausbau Immobiliengesellschaft mbH

The Elbdeck real estate project in the Neumühlen district of Hamburg comprises about 100 apartments as well as offices, restaurants and retail spaces. It is situated directly next to the Hamburg fish market and the Elbe. The complex consists of three buildings and stands on foundations that contain an underground garage with 280 parking spaces. Kieback&Peter equipped this luxury development with an efficient automation system that meets the residents’ and commercial users’ elevated standards of comfort and convenience. The most impressive feature? The system even controls the equipment that cools the buildings using the water along the foundations.

Energy-efficient cooling using water along the foundations

The building complex, which is situated on the banks of the Elbe and was designed by the architect Carsten Roth, opened in 2014. The owners, three prominent shipping families with deep roots in the region, decided on an innovative solution to cool the buildings: to collect the water that presses against the foundation walls of buildings in this area and then process it so that it is suitable for cooling the apartments and commercial spaces.

The most challenging aspect of the project was to link the building automation system to the plant responsible for processing the water along the foundations. The general contractor, Aug. Prien Bauunternehmung, commissioned the team from Kieback&Peter to develop a solution that would allow the buildings to efficiently manage their energy balance.

In addition to the processing plant, the building automation system also had to incorporate the heating, ventilation, sanitation and electrical systems and ensure that the residents of these luxury apartments were comfortable at all times.

The Elbdeck real estate complex

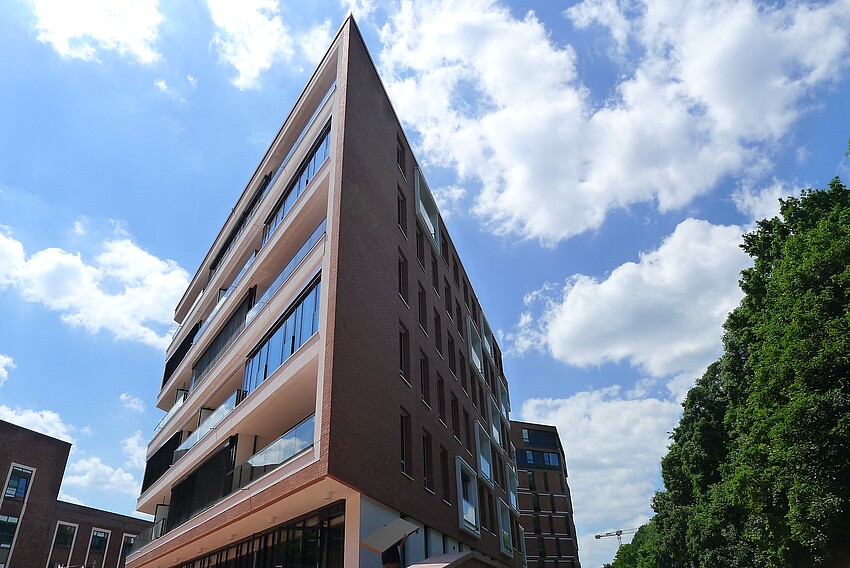

The Elbdeck real estate complex © Bina Engel

Integrated solution for all systems including the water processing plant

Kieback&Peter Hamburg deployed a team of experienced engineers, project managers and system technicians for the project: René Kruschat, Marc-Xander Spethmann and Timo Köhnen planned and implemented the project. They installed a DDC4000 automation system in the complex: Four DDC4200 and DDC4002 controllers now monitor the plant technology of the individual systems and control them with open-loop and closed-loop control. The facility manager can easily and intuitively operate the systems using a TFT touchscreen.

The water processing plant communicates with the other systems using “ready” messages and “malfunction” messages. It sends these message via the integrated overall system, for instance to signal to the raw water pumps when it is ready for operation. A flow measuring device checks that the pumps are pumping enough water from along the foundations. The building automation system also records the fill level of the water reserve tank. When it is full, the system stops water processing automatically. If there is a malfunction, the plant sends a message to the Neutrino BMS building management software. This ensures that facility management is notified immediately and can take swift action.

For the ventilation systems, Kieback&Peter installed a demand-based closed-loop control system. When determining the supply temperature of the cooling water, it also takes into account the availability of the water along the foundation.

Innovative cooling using water along the foundations. © Bina Engel

Elbdeck, Hamburg – A Summary of the Technology:

  •  Integration of HVAC, electrical, pump and water processing systems into one overall system
  •  DDC4000 system for seamless communication and control: 3 DDC4200 controllers, 1 DDC4002 controller
  •  Real-time monitoring using the Neutrino BMS software
